PRODUCTS
EAP is an alarm system that is mainly produced for the usage in marine industry. Its panel consists of 4 sections; LCD Message Display Section to display latest unacknowledged alarm messages with tag name, description and alarm attributes, Control Group Button Section consist all operational function buttons, and Buzzer Section which consists of buzzer sound hole with buzzer stop and alarm acknowledge buttons, together with ON Duty status with LED indication in Green.

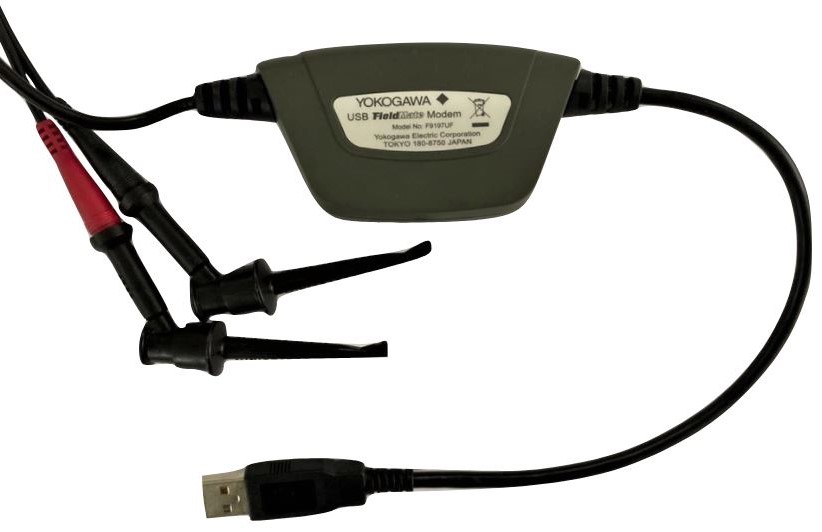

USB FieldMate Modem is a user friendly communication device that allows the user to link a BRAIN/HART network to a notebook or PC with ease. It is fully compliant with the standards set by the foundation and is compatible with all BRAIN/HART products by multiple manufacturers. Design for easy use, this modem has a compact and rugged design.

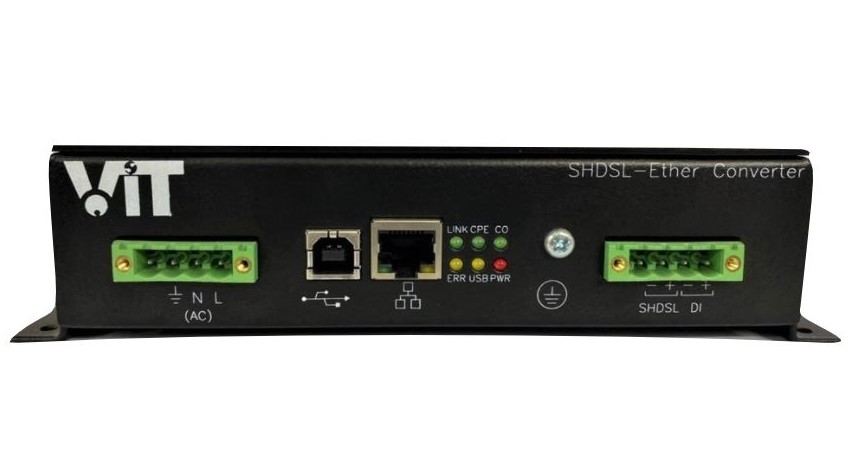

SHDSL-Ether Converter designed to extend Ethernet network service over copper infrastructure. It is transparent for multicast addressing, VLAN packets, VPN pass-through for IPSec and for protocol like MODBUS/TCP and Profinet. SHDSL allows the re-use of existing twisted copper pair with data rates from 192kbps to 5696kbps in both directions. There are two types of SHDSL converter; Type A mounted in the Gas Chromatograph and ran in the hazardous area and Type B installed in the safety area.

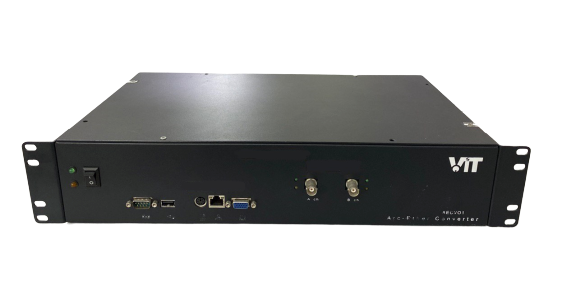

The Arc-Ethernet converter function as a protocol network between ARCNET and Ethernet network. It will be connected with PCAS Arcnet supported version via Ethernet network, and GC100 Series Analyzer via dual Arcnet network. The converter will convert any TCP and UDP data packet between these two vice versa.

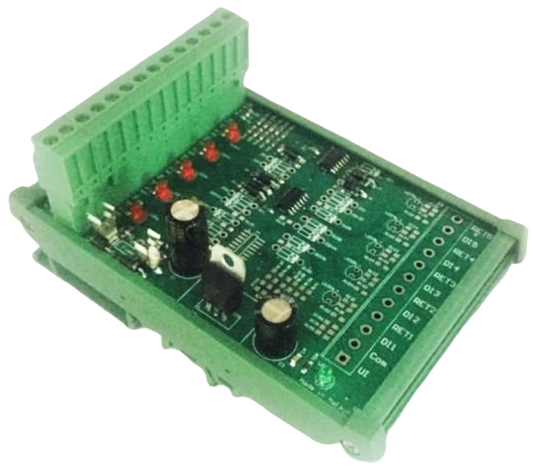

DUI is an expandable input to extend the number of digital input into the BMS. A normal BMS device only support up to 5 digital input. With DUI, take one digital input from BMS device as the point to DUI, is can split into another 5 digital input. The usage is commonly use on non-sensitive data as like on/off status. UI is the port to communicate with BMS device. Every signal or data change between BMS system or end devices of DI port will be communicate through this port. DI is the dry contact port which communicate between end devices and BMS.

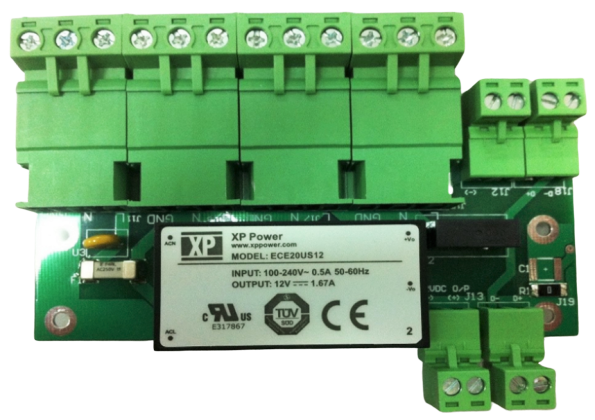

AC-DC Powerboard function is to convert from 240VAC to 12VDC. It is customize to be used in CCTV system solution.
AG100 is a SMS alert getaway which is designed as a cost effective remote system alert device that capable of monitoring up to 8 dry contacts and 4 relay outputs. User-defined SMS will be sent out to the designated hand phone numbers when alarm condition happens. Besides this, it allows the hand phone users to trigger any relay output by using SMS. These relay output can be connected to any alarm indication device, such as an alarm siren. There is a built-in microprocessor chip which is running on a real-time operating system. A GSM modem is also embedded in the getaway. User has to subscribe a SIM card for the getaway and it can be installed in any location under GSM coverage. A web-page configuration is embedded in the getaway where alert settings can be configured through the webpage.

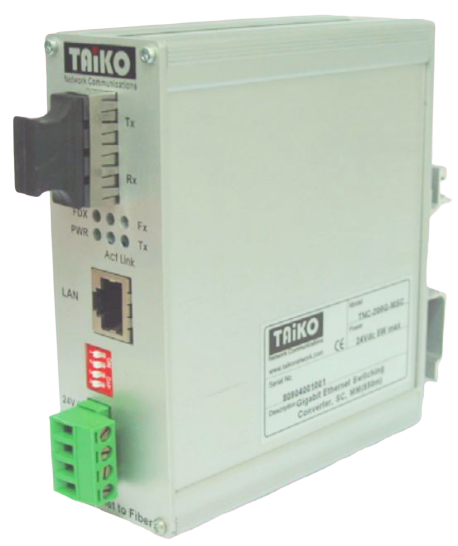

TNC200/TNC200G is designed to fit the emerging deployment needs of optical fiber network. This stand-alone converter allows you to connect Gigabit twisted-pair network to optical-fiber network easily and cost effectively to a maximum distance 60km. This series is fully compliant with IEEE 802.3z and 802.3ab standards. The installation and operation procedures are simple and straightforward. User can monitor the real time operation status easily via a set of LEDs located in the front panel.
